Exporting data from charts

In DataLens, you can export data from charts:

• Direct export of data displayed on the chart (within display limits):

  • Available for all chart types other than maps.

    • With pagination on, only table data from the current page will be exported.
    • For graphs, exports the already aggregated data the chart is built based on.

  • The following formats are available:

    • XLSX
    • CSV
    • Markdown (copied to clipboard)

  • File upload begins immediately.

• Background data export with extended limits of up to 1 GB:

  • Available only for paginated Tables created in the wizard. Exports data from all the table's pages.

  • The following formats are available:

    • XLSX
    • CSV.

  • First, the file is generated in the background, then a download link is created. File preparation takes up to 30 minutes.

Any user with access permissions for a chart can export its data unless you disable data export.

Direct data export from chartDirect data export from chart

To export the data displayed on the chart:

1. Open the data export window by doing one of the following:

   • Open the chart you want to export data from and click → Save as in its top-right corner.
   • On the dashboard, find the chart for data export and click → Save as in its top-right corner.

2. Select the format and download settings, then click Save.

   Note

   If you see two tabs named Current page and All pages in the window that opens when you select the CSV format, remain on the Current page tab. The All pages tab is reserved for background export.

The data file will be generated immediately and downloaded in your browser. The maximum export file size is 50 MB.

Background data exportBackground data export

• Limitations
• Exporting data in background
• Export page
• Export history

Before initiating a background data export, make sure that:

• Export is not disabled at the DataLens instance level or connection or dataset level.

LimitsLimits

The following limitations apply to the background export:

• Not supported for QL charts or charts created in Editor.

• Not available in pivot tables.

• Table pagination must be enabled.

• Minimum number of pages to export is two.

• Maximum number of rows in the table is 1,000,000.

• Rows with totals and tree hierarchy are not supported. You can export a tree hierarchy if pagination is disabled.

• Maximum export file size is 1 GB.

• File is available for download for 24 hours after the export is complete.

Exporting data in backgroundExporting data in background

To initiate a background export, do the following:

1. Open the data export window by doing one of the following:

   • Open the chart you want to export data from and click → Save as → CSV or XLSX in its top-right corner.
   • On the dashboard, find the chart for data export and click → Save as → CSV or XLSX in its top-right corner.

2. In the export window, under Pages, select All. Optionally, edit the following export file settings: Value delimiter, Decimal separator, and Encoding. You can also navigate to the list of exported data by clicking Export history.

3. Click Save. At the bottom of your screen, you will see a message saying that the export has started and a link to the export page, where you can monitor the export status and details. Once the export is complete, you will get the Chart export complete message with links to the export page and file for download.

If the export fails, you will get an error message. Make sure that data export is not disabled for this chart at any level and the user has the required permissions, then try again.

The user who initiated the export can download the export file from the data export history page.

Export pageExport page

The export page displays the following information:

• Export status or errors.
• Chart with exported data.
• Dataset used to create the chart.
• Connection used to create the chart.
• Workbook containing the chart.
• Export start time and duration.
• User who initiated the export and the Copy user ID button.
• Download button to download the file with data. This button will be available after the export is complete to the user who started the export for 24 hours only.

Background data export historyBackground data export history

You can open the history window for background data export in one of the following ways:

• In the left-hand panel, select Background data export.
• In the left-hand panel, select Service settings and on the General tab, click Background data export under Data export.
• Open the chart export window and click Export history.
• After your export completes, follow the Export page link in the Chart export complete notification.

Export data is loading up as you scroll the page.

The page displays a list of export operations and their details:

• Chart with exported data.
• Export status.
• Workbook containing the chart.
• User who initiated the export.
• Export start date and time.
• Exported file size.

To download the file, click in the export row. To select which columns to display in the list, click .

To narrow down the list of exports, you can filter them by:

• Selected object.
• Source chart name.
• Export start date.

Users with the datalens.admin role in the organization can also select to display All exports. This allows them to view all exports created within the organization and filter them by export initiator.

Disabling data exportDisabling data export

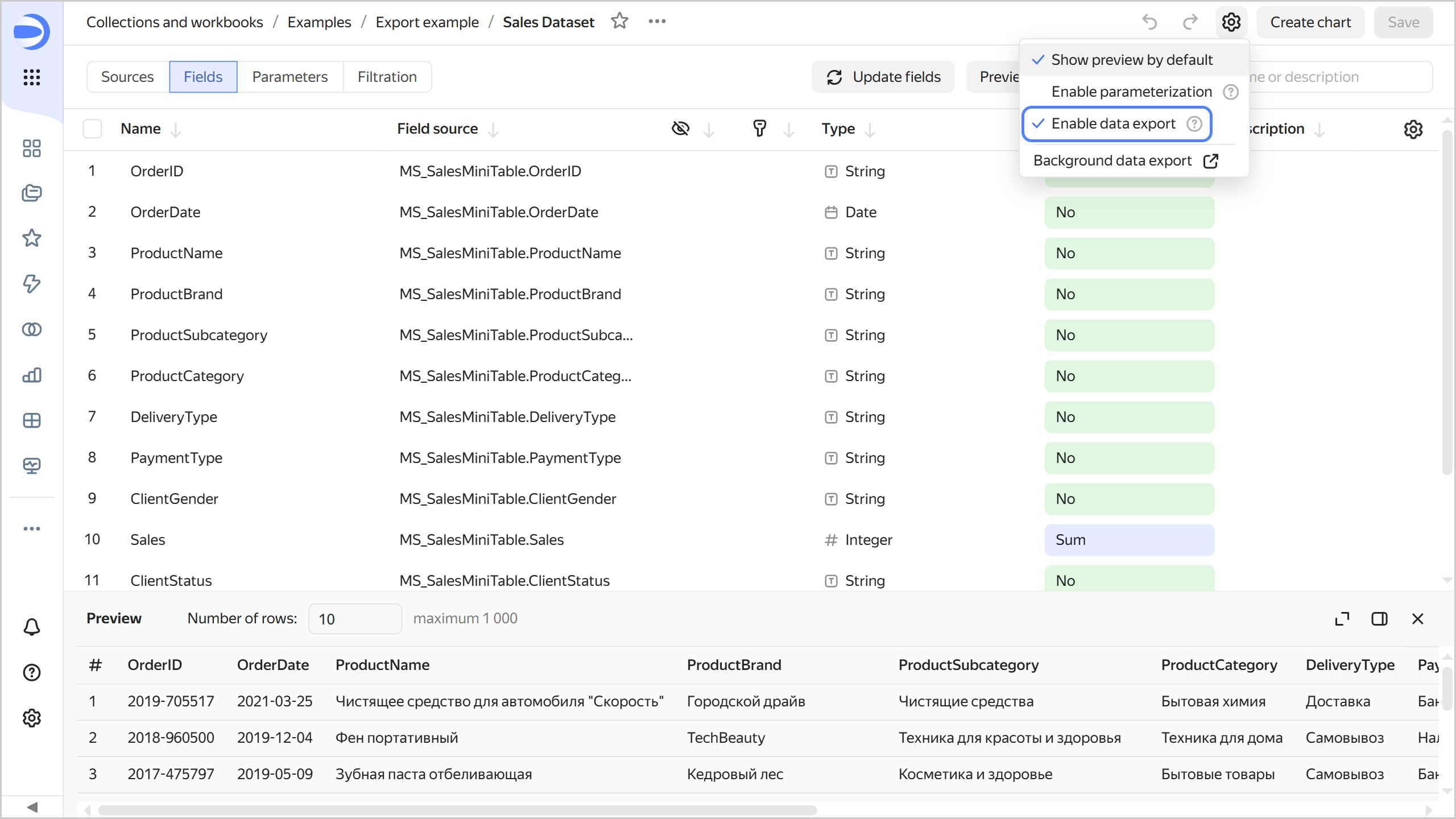

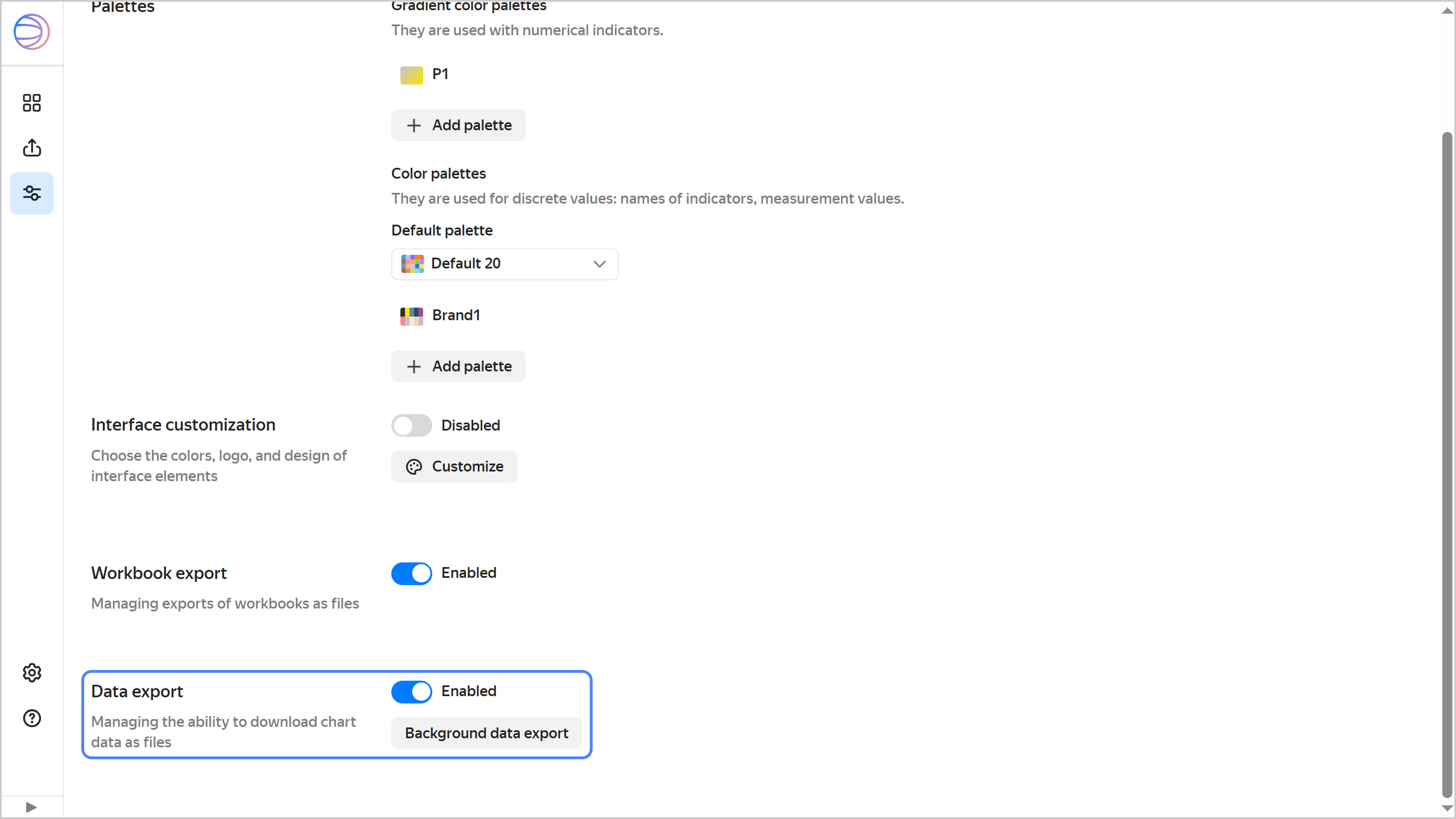

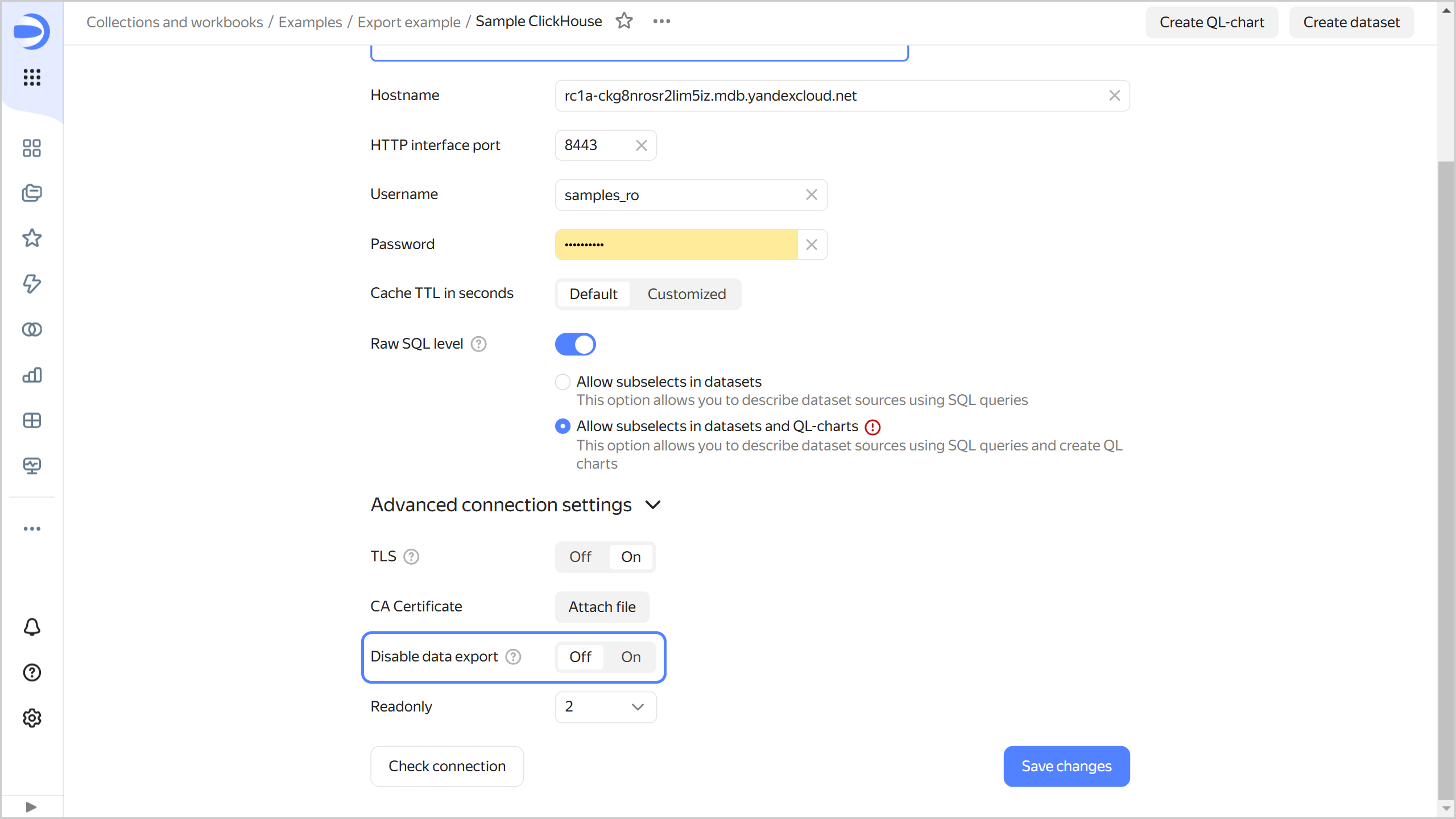

By default, users can export data from charts. You can disable this option at the DataLens instance level or connection or dataset level.
