DataLens On-premises wizard charts

The wizard is a constructor where you can create charts based on dataset data. You can create an unlimited number of charts based on a single dataset.

Charts allow you to quickly analyze and test hypotheses. You can also save charts and add them to dashboards as widgets.

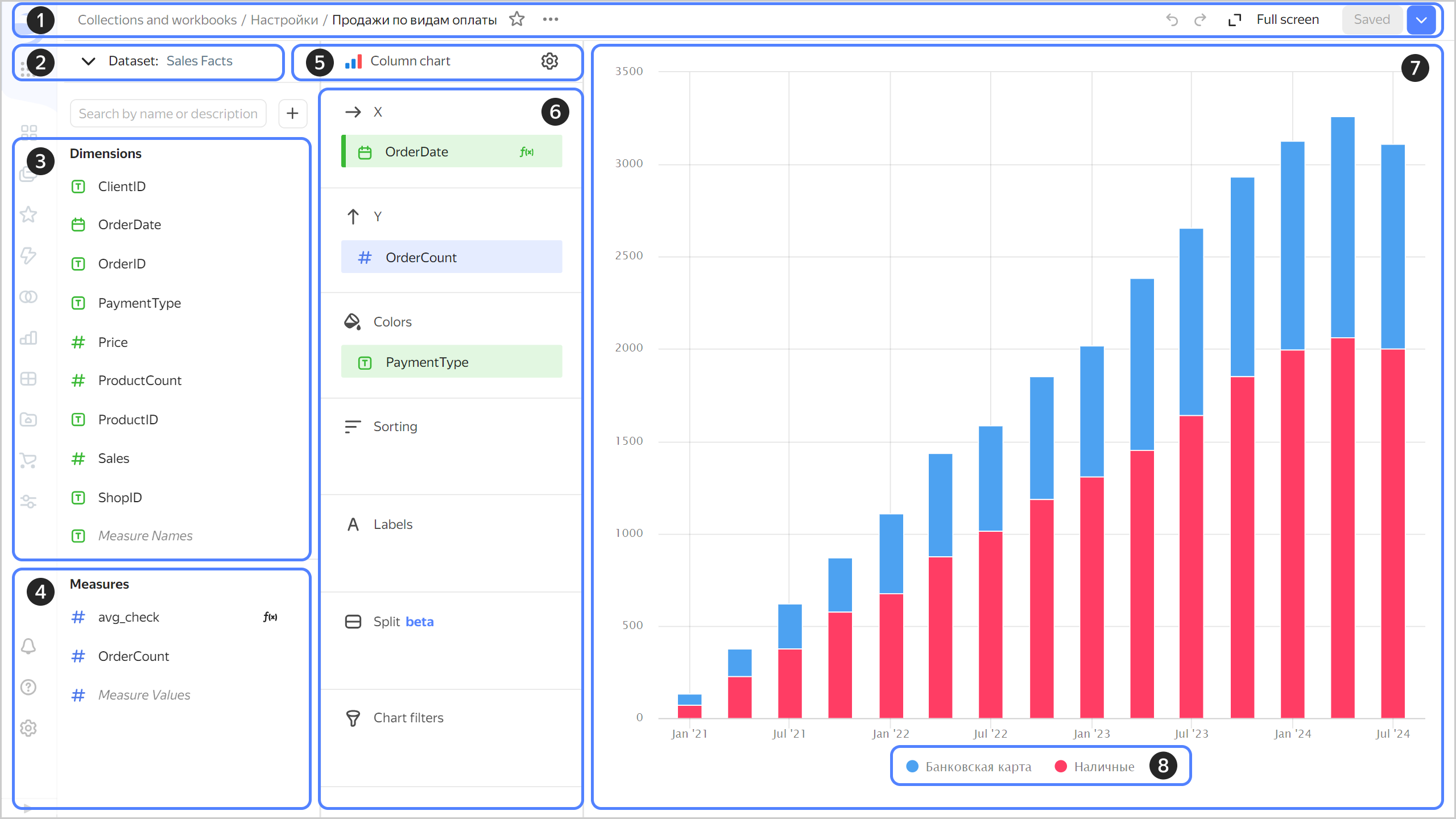

The wizard UI has the following elements:

1. At the top, you can see general information, such as the chart path and the elements for managing and saving a chart, common for all charts.
2. At the bottom, you can select a dataset to build a chart from. Once you select a dataset, you will see a list of fields you can use in the chart.
3. Dataset dimensions you can use to build your chart. You can also add a calculated field to this list.
4. Dataset measures you can use to build your chart.
5. Chart type selection button and the icon to open the general settings.
6. List of sections. The available sections depend on the selected chart type, e.g., X axis, Y axis, filters, etc. You can drag and drop fields in a section.
7. Preview area where the visualization is displayed. You can select multiple elements to view in graphs and charts by holding the Ctrl key.
8. Chart legend. The legend maps the chart colors to the field values in the Colors section. By clicking individual legend elements, you can change the data display in the chart. You can select multiple legend elements by pressing and holding Ctrl/Cmd. You can enable and disable the legend in the chart settings.
