Configuring a navigator in DataLens On-premises
Note
The navigator is available for those charts from the list that have a field of the Date or Date and time type in their X section:
To configure the navigator:
-
In the left-hand panel, click Charts and select the chart you need to configure a navigator for.
-
On the left side of the screen above the chart, click .
-
In the Chart settings window, enable Navigator.
-
Select the navigator display mode:
- All lines: Display all chart lines in the navigator.
- Choose lines: Display the selected lines in the navigator.
-
Specify the Default period. Each time you open the chart, the last period matching this setting will be displayed. Put
0or leave the field empty to display the whole range of values. -
Click Apply. The navigator will appear at the bottom of the chart.

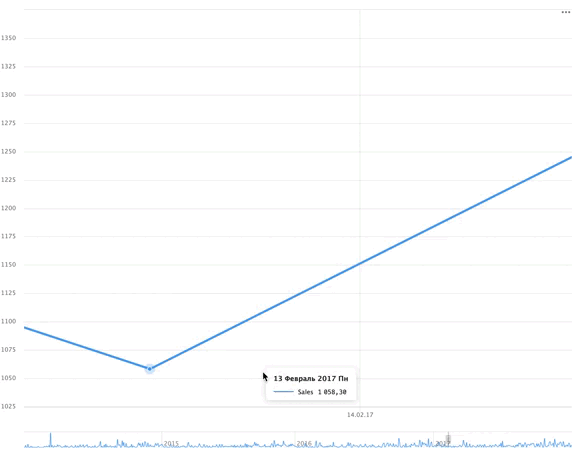

Example of using a navigator
.
