Creating an API Connector connection

With API Connector in DataLens On-premises, you can send HTTP requests to any API on the internet. You can use such a connection only in Editor as it is not supported in QL charts or dataset-based charts.

To create an API Connector connection, follow these steps:

1. Select a workbook for the new connection and click Create → Connection.

2. Under Files and services, select API Connector.

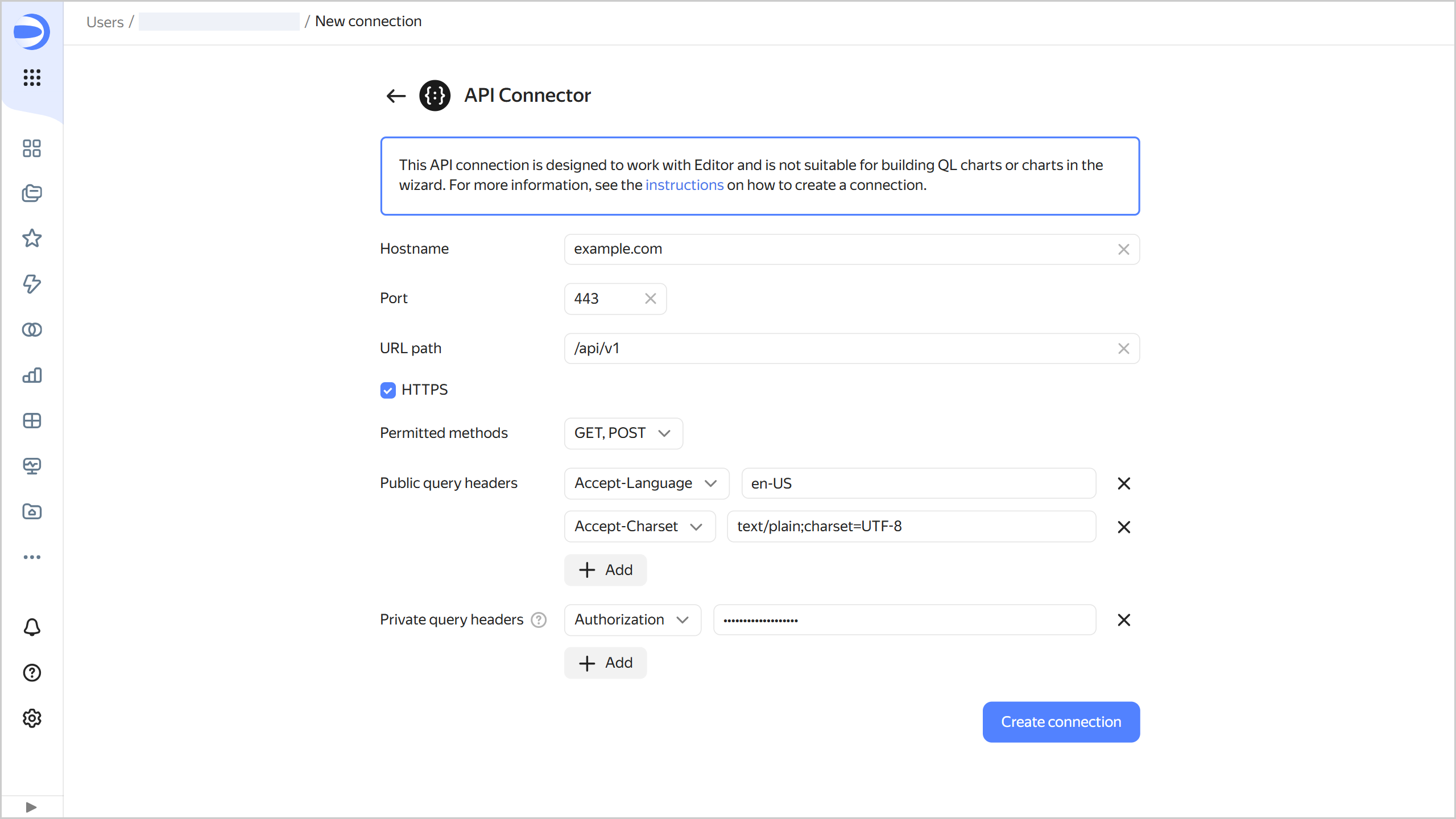

3. Configure the connection as follows:

   • Host name: Specify the path to the host you will send a request to.

   • Port: Specify the API connection port.

   • URL path: Optionally, specify the path to the API (part of the URL without a protocol, host name, or port).

   • HTTPS: Enable the secure connection option if your server supports HTTPS.

   • Allowed methods: Select a method to send an HTTP request to the API. The available methods are GET, POST, PUT, PATCH, and DELETE.

   • Add public and private headers to your HTTP request as key-value pairs. To do this, click Add, select the header, and enter its value.

     • Public request headers do not contain sensitive data. You can view values of public headers at any time in the connection settings. The following public headers are available:

       • Accept-Charset: List of supported response encodings.
       • Accept-Encoding: List of supported response contents encoding methods.
       • Accept-Language: List of supported natural languages.
       • Prefer: HTTP status code to send in the response.

     • Private request headers are used for sensitive data. Their values are encrypted; you cannot view them in the connection settings, but you can replace them with new values. The following private headers are available:

       • Authorization: API authentication data.
       • X-Api-Key: API key for authentication in ClickHouse®.
       • X-ClickHouse-User: Username for authentication in ClickHouse®.
       • X-ClickHouse-Key: User password for authentication in ClickHouse®.



4. Click Create connection.

5. Select a workbook to save your connection to or create a new one. If using legacy folder navigation, select a folder to save the connection to. Click Create.

6. Enter a name for the connection and click Create.

ClickHouse® is a registered trademark of ClickHouse, Inc.
