Table in DataLens On-premises

A table is a standard form of presenting data with the maximum level of detail.

What you need to know

It stores data as a two-dimensional array that consists of columns and rows. Table column headers show dimension or measure names, while cells contain their values. Each row is a set of cells with each column's value. A table may also contain a row with results.

Tip

It is best to place tables at the end of a dashboard.

Graphics are easier to "read", whereas delving into tabular data requires more time and attention.

Tables are most suitable for detailed analytics (a deep dive into figures) and problem detection.

A table is a good choice for quantitative comparison, where you can see different values of multiple categories or dimensions. The table below shows three different measures by three categories.

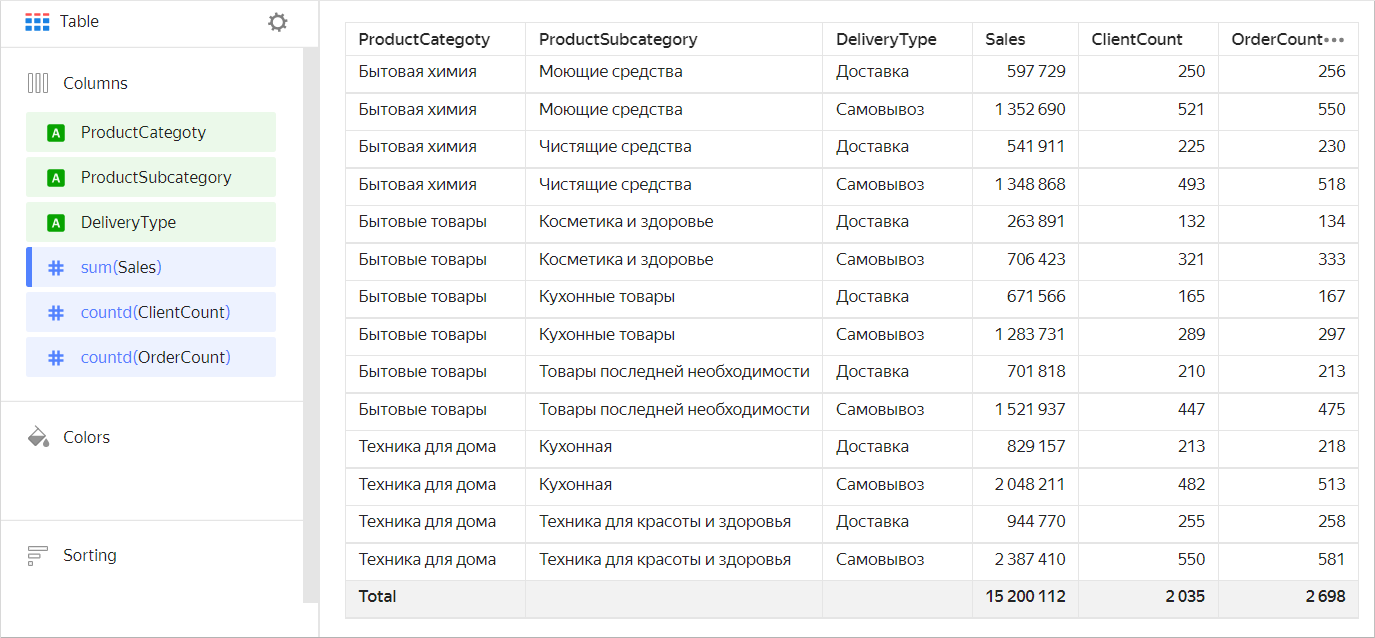

table-chart

Categories Subcategories Delivery type Sales Number of customers Number of orders
Household cleaners Detergents Delivery 597,729 250 256
Household cleaners Detergents Pickup 1,352,690 521 550
Household cleaners Cleaners Delivery 541,911 225 230
Household cleaners Cleaners Pickup 1,348,868 493 518
Household goods Beauty and health products Delivery 263,891 132 134
Household goods Beauty and health products Pickup 706,423 321 333
Household goods Kitchen products Delivery 671,566 165 167
Household goods Kitchen products Pickup 1,283,731 289 297
Household goods Non-essential goods Delivery 701,818 210 213
Household goods Non-essential goods Pickup 1,521,937 447 475
Home appliances Kitchenware Delivery 829,157 213 218
Home appliances Kitchenware Pickup 2,048,211 482 513
Home appliances Health and beauty equipment Delivery 944,770 255 258
Home appliances Health and beauty equipment Pickup 2,387,410 550 581

Wizard sections

Wizard
section		 Description
Columns Dimensions and measures that will be used as columns. The field name appears in the column header. You can use markup functions in columns.
Colors Measure. Affects color fill of all cells within a row. It may only contain one measure.
Sorting Dimensions and measures specified in the Columns section.
You can use multiple dimensions and measures.
The order of section fields affects the sorting order of table fields. The sorting direction is marked with an icon next to the field: for ascending or for descending. To change the sorting direction, click the icon.
Filters Dimension or measure. Used as a filter.

How to create a table

To create a table:

Warning

If you use the new DataLens object model with workbooks and collections:

  1. Go to the DataLens home page.

  2. Open the workbook, click Create in the top-right corner, and select the object you need.

Follow the guide from step 4.

  1. Go to the DataLens home page.

  2. In the left-hand panel, select Charts.

  3. Click Create chart → Chart.

  4. At the top left, click Select dataset and specify the dataset to visualize. If you do not have a dataset, create one.

  5. Select Table as the chart type.

  6. Drag a dimension or measure from the dataset to Columns. The field is displayed as a column.

    Note

    • After dragging a Tree of strings dimension to the Columns section, you will see a tree hierarchy in the visualization area.
    • You can change the order of columns by dragging dimensions in the Columns section.

Additional settings

Setting up table size

  1. At the top of the screen, click next to the chart type.

  2. Select the table size:

    • L: Large (default)
    • M: Medium
    • S: Small

  3. Click Apply.

Depending on the size you select, the table will adjust its font size, line spacing, and indentation within cells.

Renaming columns
  1. Under Columns, click the icon to the left of the dimension or measure name.
  2. In the window that opens, change the Name field value and click Apply.
Adding tooltips to table headers
  1. Under Columns, click the icon to the left of the dimension or measure name.
  2. In the window that opens, enable the Tooltip option, enter the text in the field below, and click Apply. By default, with this option enabled, the tooltip text is taken from the field description in the dataset.

When the option is enabled, the icon appears next to the table column header. Hover over the icon to bring up the tooltip.

Setting up table data sorting by multiple columns
  1. At the top of the screen, click next to the chart type.
  2. Disable Pagination and click Apply.
  3. Press and hold Ctrl while clicking the headers of columns to change the sorting for.
Setting up column width

  1. In the top-right corner of the Columns section, click (the icon appears when you hover over the section).

  2. Under Width, select the values for columns and rows:

    • Auto: Automatic column width.
    • %: Column width as a percentage of the table's total width.
    • px: Column width in pixels.

    The % and px options allow you to break text within cells by word. Thus the number of rows in a cell may grow.

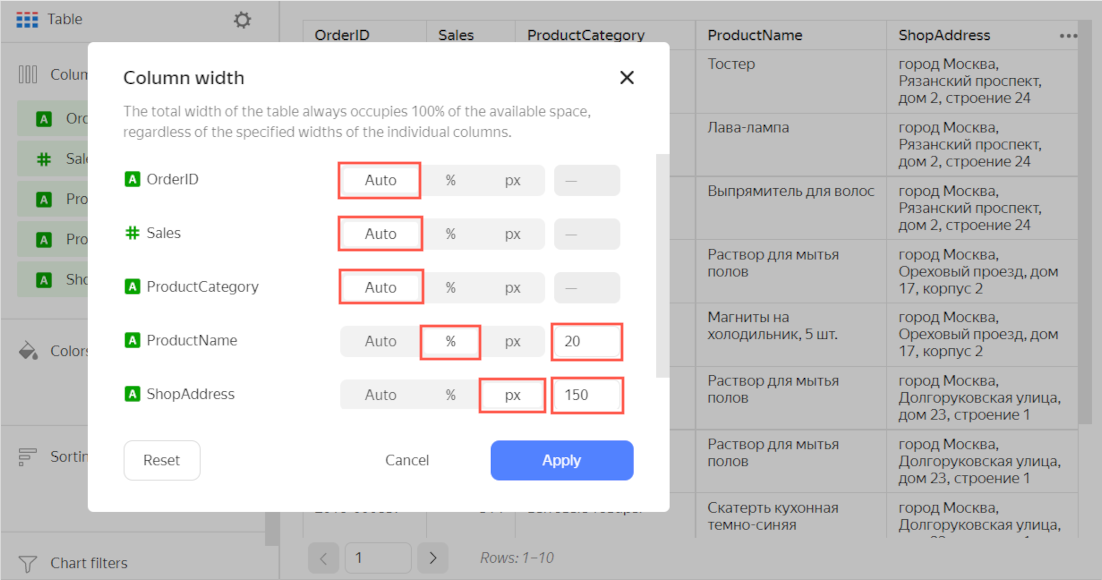

    Example of column width settings


    Note

    The total width of a table always takes up 100% of available space regardless of the specified width of individual columns.

  3. Click Apply.

To set the width of any column to Auto, click Reset.

Pinning table columns

You can pin multiple columns on the left side of the table:

  1. In the top-right corner of the Columns section, click (the icon appears when you hover over the section).
  2. In the window that opens, click next to the name of the far right column to pin the columns. This column and all columns to the left of it will stay in place as you scroll horizontally.
  3. Click Apply.
Changing the number of rows

Use the Pagination and Limit settings to manage the number of rows displayed on the screen and exported from the chart. To change the number of rows:

  1. At the top of the screen, click next to the chart type.
  2. Enable pagination and set the number of rows per page or disable pagination.
  3. Click Apply.

By default, tables come with pagination on and a limit of 100 rows per page. With pagination off, the whole table will be displayed within the display limits. Pagination is not available if only one page is displayed or there is no data.

With pagination on, only table data from the current page will be exported. To save the whole table within the chart export size limit, disable pagination.

Enabling pagination

Enable pagination if your table has many rows:

  1. At the top of the screen, click next to the chart type.
  2. Enable Pagination and click Apply.

This option is not available if only one page is displayed or there is no data.

Adding a row with totals
  1. At the top of the screen, click next to the chart type.
  2. Enable Totals and click Apply.

The Total row will now appear in the table. Values in the row are calculated using the same formulas as aggregation in the measure.

Note

  • Values in the Total row are calculated only for measures. For dimensions, the row is empty.
  • If the Pagination option is selected, the Total row is placed on the last page.
  • If a table consists of a single entry, the Total row is not displayed.
  • The row with totals does not display results calculated using LOD expressions, window functions, and time series functions.
Preserving spaces and line breaks
  1. At the top of the screen, click next to the chart type.
  2. Enable Preserve spaces and line breaks and click Apply.

With this option on, the text will feature the same spaces and line breaks as in the source data.

Adding row color

  1. Drag a measure to the Color section.

  2. In the top-right corner of the Colors section, click (the icon is displayed when you hover over the section).

  3. Set up colors:

    • Gradient type: Select two or three colors.

      • Gradient color: Select a color palette for the gradient from the list.
      • Gradient direction: Change the gradient direction using the icon.

    • Set threshold values: Set numeric thresholds for each color.

Setting field fill color

  1. Under Columns, click the icon to the left of the dimension or measure name.

  2. In the window that opens, enable Column fill color.

  3. In the By field list, select the field whose values the fill will be based on.

  4. Set the Fill type:

    Note

    • You can use the Palette type for dimensions and the Gradient type for measures.
    • Fill is not supported for the Total row.
    1. Click the color scheme selection field and set a color for each dimension value.
    2. Click Apply.

    1. Click the gradient selection field and set the following properties:

      • Gradient type: Select two or three colors.

        • Gradient color: Select a color palette for the gradient from the list.
        • Gradient direction: Change the gradient direction using the icon.

      • Set threshold values: Set numeric thresholds for each color.

    2. Click Apply.

  5. For the Gradient fill type, specify the coloring option for null values: Do not color or Color as 0.

  6. Click Apply.

Adding a linear indicator to a column with a measure

  1. Under Columns, click the icon to the left of the measure name.

  2. In the window that opens, enable Linear indicator.

  3. Specify the indicator settings:

    • Fill type: Type of fill color for the indicator.
    • Positive values: Indicator color for positive values.
    • Negative values: Indicator color for negative values.
    • Show labels: This option enables displaying measure values in a cell.
    • Show in totals: This option enables displaying the indicator in cells with totals.
    • Align: Left or right alignment of the indicator position in a column. Only applies if all numbers in a column are either positive or negative.
    • Scale: Sets the indicator scale. If you set a scale manually, specify the min and max values. Make sure the min value is less than or equal to 0 and the max value is larger than or equal to 0.
    Example of linear indicator settings


  4. Click Apply.

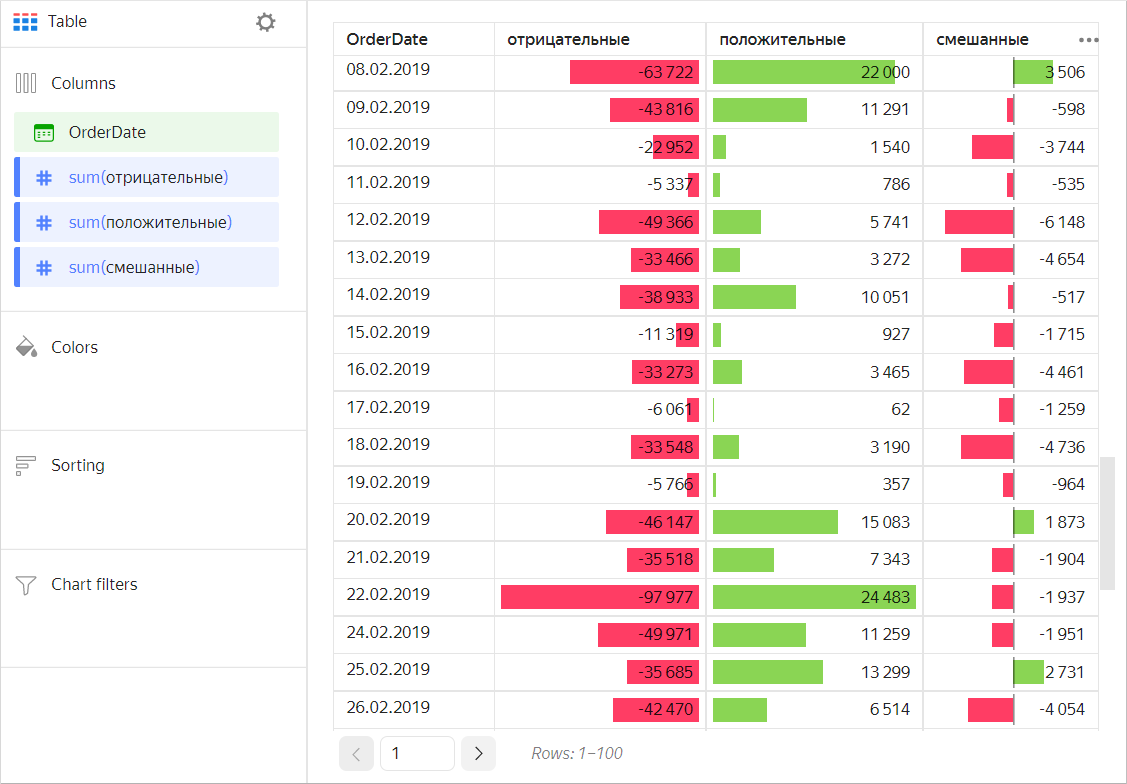

Example of a chart with a linear indicator


Recommendations

Tip

Use tables for their intended purpose only. Do not replace all data visualization types with them.

  • Sizes. Limit the size of your table or use filters and sorting. Tables with too many rows or columns are hard to read.

  • Place dimensions on the left and measures on the right. This makes the data easier to comprehend.

  • Make sure column names you use are short and readable.

  • Totals. Enable totals at the bottom of the table.

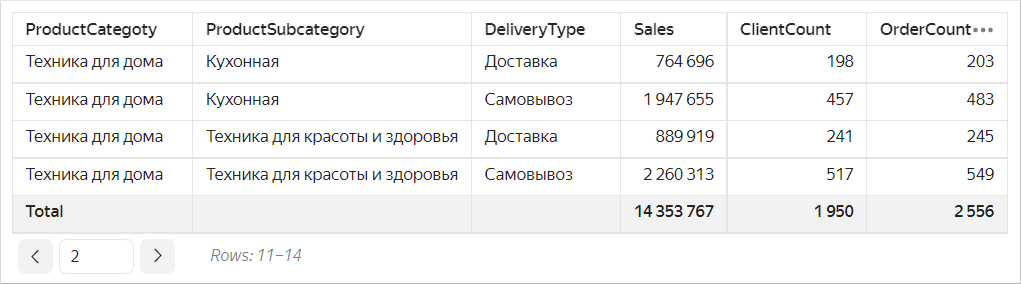

    Table with totals and pagination

    table-pagination

  • Totals. Present totals as a column (or subtotals as a column). To do this, use calculated fields based on window functions or LOD expressions. For example:

    • Sales subtotal by product category: CategorySales with the SUM(SUM([Sales]) WITHIN [ProductCategory]) formula.

    • Total sales: TotalSales with the SUM(SUM([Sales]) TOTAL) formula.

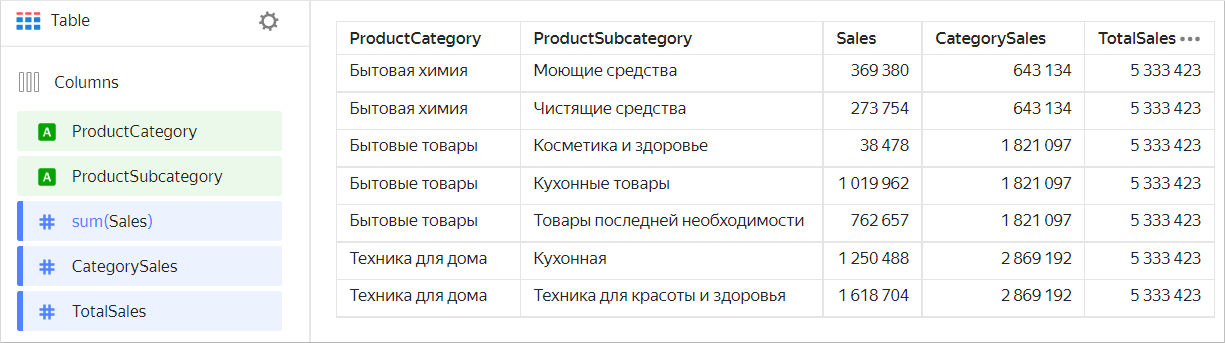

      Table example

      table-sum

    • Maximum order count per month grouped by product category: MaxCountByCategory with the MAX(COUNTD([OrderID] INCLUDE [ProductCategory])) formula.

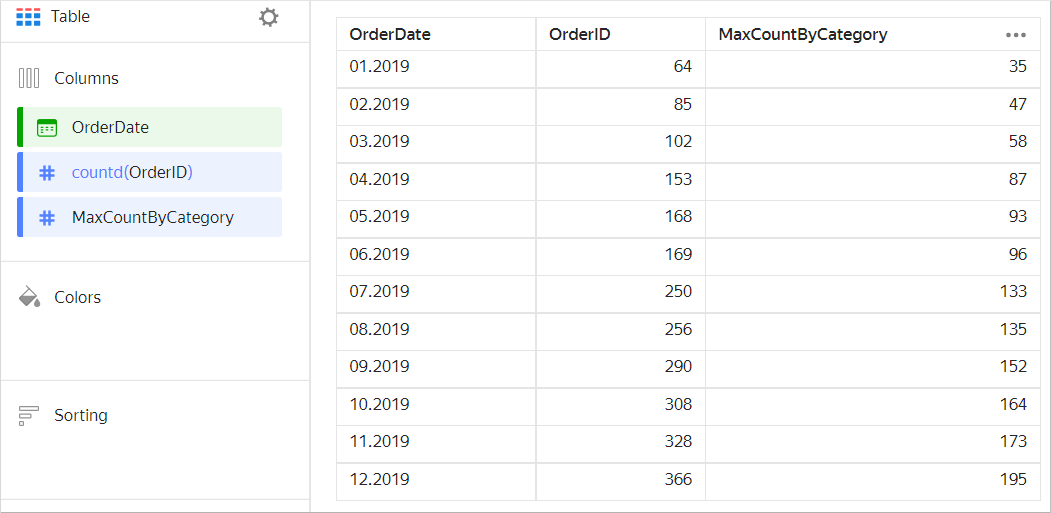

      Table example

      table-count

Tip

Use sorting. This makes the data easier to comprehend.

  • Use the URL function in table cells to enable users to follow a link.

  • Auto height: When placing a table on a dashboard, enable auto height in the widget settings. This will help you save dashboard space.

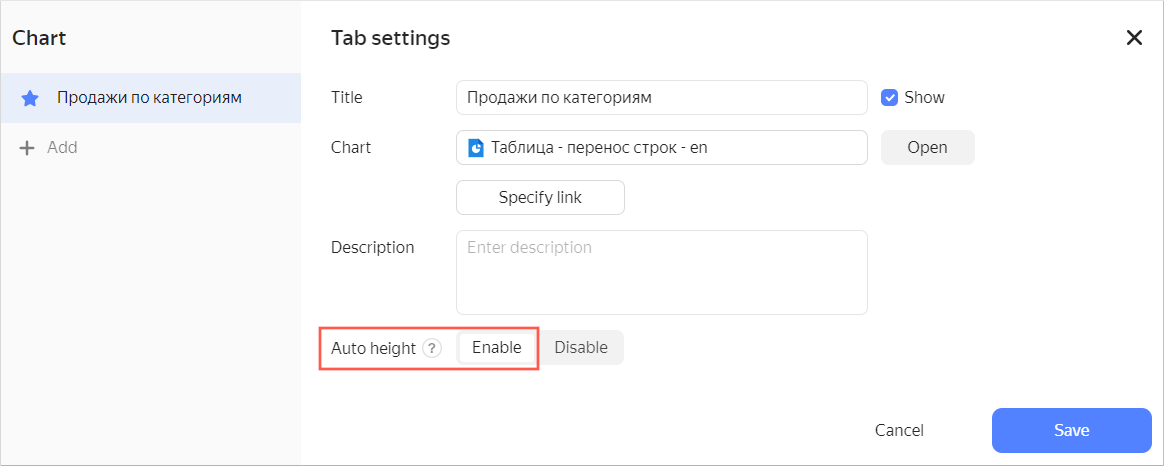

    Setting up auto height

    table-auto-height

    If you use a filter, the table height will automatically adapt to the number of rows.

    Using a filter with the auto height option enabled

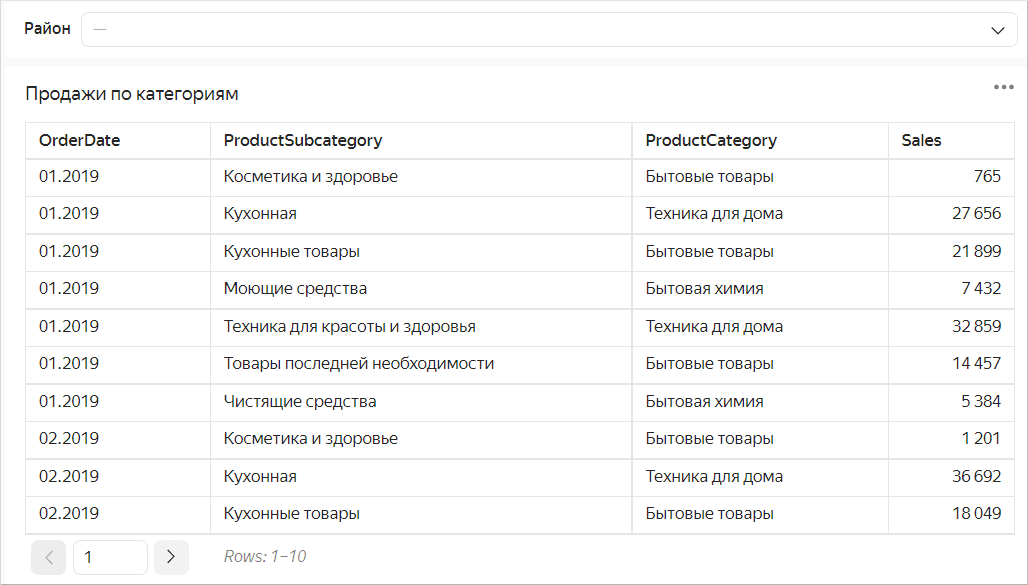

    If no value is set in the filter, a table displays all rows depending on the limit to the number of rows per page.

    table-auto-height-2

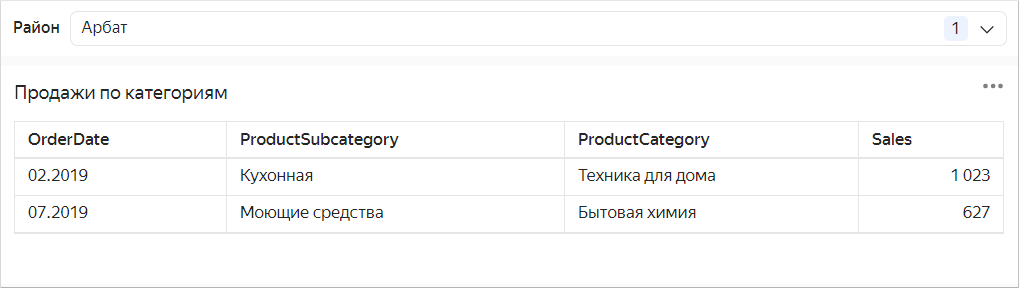

    If the number of displayed rows decreases when using the filter, the table height is reduced automatically.

    table-auto-height-3

  • If a table cell contains a long text, use the column width settings to enable a line break in cells.

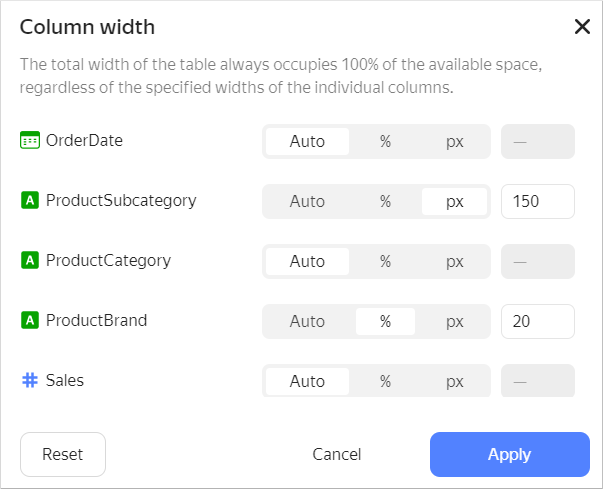

    Setup example

    table-column-width

  • When displaying numeric data, specify the dimension and the number of decimal places. For example, if you select Millions, M in the Dimension drop-down list, you will see 10,3 M rather than 10 345 234.23. If you set the Decimal places field to 2, you will see 123.12 rather than 123.1234.
